Submersible Motor

Introduction:

Submersible motors are becoming increasingly popular because of their versatility and efficiency in a wide range of applications. They are utilized for pumping water from wells, boreholes, and other underground water sources. A submersible motor is an electric motor that is designed to work underwater, submerged in liquids. They are encased in a waterproof housing to protect them from moisture and other water-related hazards.

As a manufacturer located in China, we produce high-quality submersible motors that are suitable for a diverse range of applications. Our submersible motors are of superior quality and have been designed to meet the most rigorous standards set by international regulatory bodies.

Product Features:

Our submersible motors have a variety of features that make them an ideal choice for merchants. Some of these features include:

1. High Efficiency:

Our motors have been designed to have a high level of efficiency in converting electrical energy into mechanical energy. This is achieved through careful design and the use of high-quality materials.

2. High Torque:

Our motors are capable of producing high torque even at low speeds. This is important when working with water sources that have high viscosity or where the pump head is at a considerable distance from the water source.

3. Robust Construction:

All our submersible motors have been constructed with robust materials to withstand the corrosive effects of water and other liquids. This is important when pumping water from wells or boreholes that may contain elements such as salt or other corrosive chemicals.

4. Low Noise:

Our motors have been designed to produce very little noise or vibration, making them suitable for use in domestic and industrial settings.

5. Easy Maintenance:

Our motors are designed to be easy to maintain, with the addition of a few basic tools, maintenance work can be carried out quickly and efficiently.

6. High Reliability:

All our submersible motors are built to strict quality standards and have been designed to operate reliably for many years.

Applications:

Our submersible motors are suitable for a wide range of applications. Some of these applications include:

1. Water Treatment:

Our motors are suitable for use in water treatment plants, where the water is purified and made safe for consumption.

2. Irrigation:

Our motors can be used in irrigation systems for pumping water from wells or boreholes to irrigate crops.

3. Domestic Water Supply:

Our motors can be used to pump water from wells or boreholes for domestic water supply in both rural and urban areas.

4. Industrial Applications:

Our motors can be used in various industrial applications such as refrigeration, air conditioning, and cooling systems.

5. Mining and Construction:

Our motors are suitable for use in mining and construction applications where water must be pumped from deep underground.

Conclusion:

In conclusion, our submersible motors are an excellent choice for merchants as they are designed with many features that make them versatile, efficient, and easy to maintain. Our motors are of superior quality and have been designed to meet the most rigorous standards set by international regulatory bodies. It is our commitment to providing the best customer service and products that sets us apart from other manufacturers. If you are looking for a reliable, high-quality submersible motor supplier, look no further. We are your trusted partner in submersible motor technology.

Product overview:

this series of products are mainly composed of high-efficiency submersible pump and permanent magnet submersible three-phase synchronous motor, which work in the water. Compared with the conventional QJ submersible pump, its biggest advantage is high efficiency and energy saving. The motor adopts permanent magnet submersible three-phase synchronous motor. During the operation of the motor, the non excitation power loss and rotor copper loss are 3 ~ 5% higher than the specified value of GB / t2818 standard, and the power factor is 5 ~ 10% higher. At the same time, the motor has high starting performance and high overload capacity, and the motor control function can be realized by using general control equipment. The flow passage parts of the water pump, impeller and guide shell, are specially designed or made by special process, and the efficiency is 2 ~ 5% higher than the value specified in GB / t2816 standard. It is a new generation of energy-saving and efficient pumping equipment.

For your submersible pump, YQS Series Stainless Steel Casing Water Submersible Motors are produced in accordance with ISO9001 quality standards. These motors give you guaranteed long-life operating without the need for maintenance.

Production Features

1. A wide power range in a compact chassis that can affordably handle the majority of your applications

2. A rewindable (wet wound) induction motor with windings that are PVC/PE insulated

3. Special graphite thrust and radial bearings with high capacity and water lubrication are guaranteed for a long service life.

Complete mounting dimensions of 4. 6" and 8" per NEMA standard.

5. 10" and 12" Mounting Dimensions in accordance with European Standard.

6. High corrosion resistance is offered by stainless steel casing and shaft.

7. Low operating costs are provided by high-efficiency electrical designs that are guaranteed by approved raw materials.

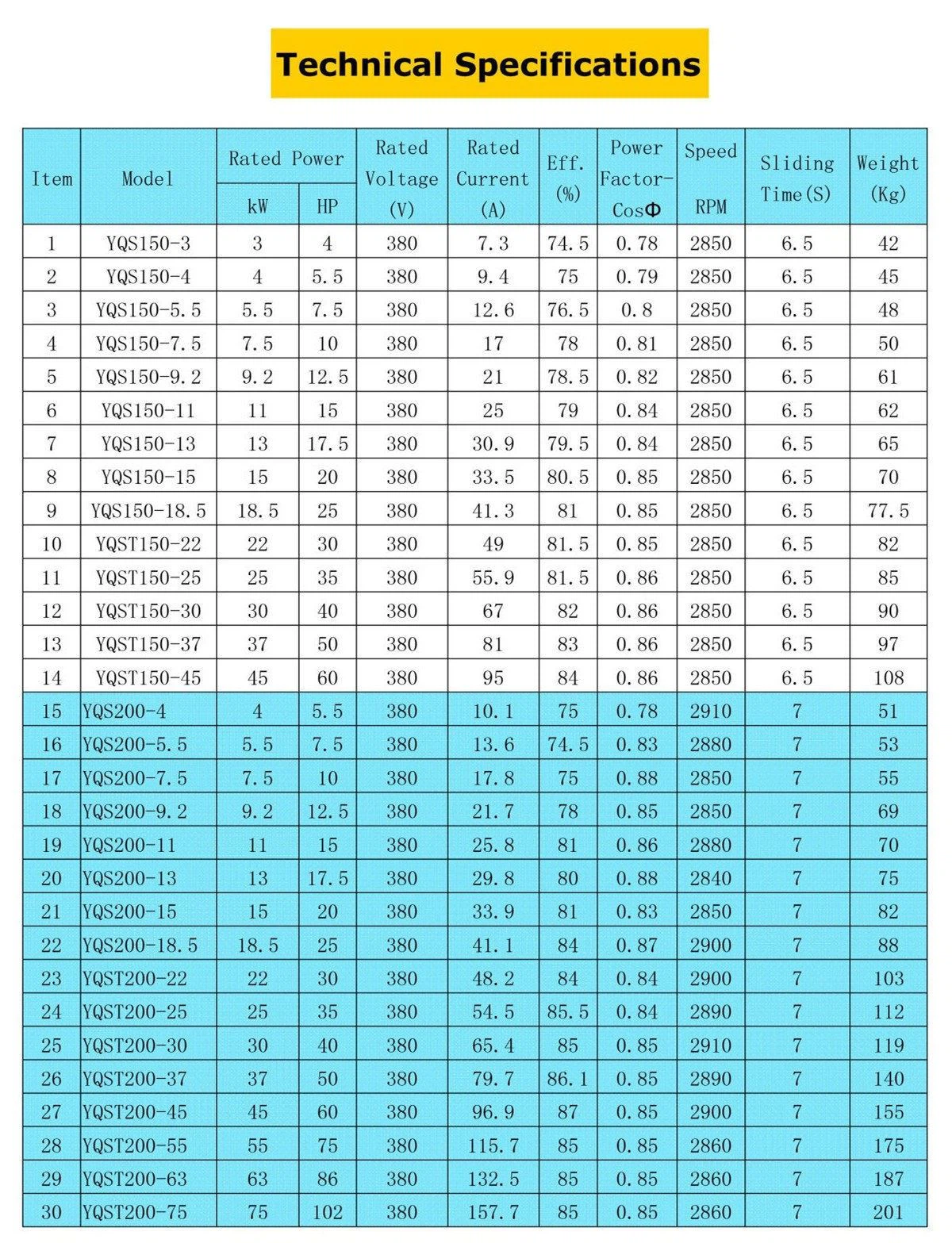

Specification

● Standard:

1. Power supply: 3PH 380V/ 50HZ, 460V/60HZ.

2. Protection: IP58

3. Motor Casing: Stainless Steel AISI 304

4. Motor Shaft: Stainless Steel AISI 410

5. Upper / Lower Support: Casing Iron with Electrophoresis painting or Stainless Steel.

6. Outlet Cable: 3M for 15KW less 5M for 18.5KW above

7. Surround Water Temp: less than 30℃

● Option

1. Star-Delta Start with Other Voltage Power Supply (Cable Position: 90°C)

Mechanical Seal 2.

3. Bronze Lower/Upper Support

4. Additional pushing bearing materials are available for various operating environments.

5. Motor outlet cable, available in custom lengths Two outlet cables are offered for 5.5 KW and above.

6. Special winding wire for high water temperature surroundings.

Operation Conditions

1. Motor should be fully submerged into water. The depth of submergence is not more than 70M & the min. distance to the bottom of the well should not be less than 3M

2. Duty: Continuous (S1), Max. Start / Hour: 20

3. Max. Voltage Fluctuation: ±5%, Max Frequency Fluctuation: ±1%, Max. Solid content within water not more than 0.01% by weight

4. PH value within 6.5-8.5

5. Clean water or Anti-freezing mixture should be filled into motor before operation.

Model Nomenclature

E.G.: Model YQST(R)200-45/4

YQS— Submersible Motor for Deep Well

T— High Duty Thrust Bearing

R— For Geothermal water

200— Min. Well, Dia.

45— Motor Power

4— 4 Poles (N.A. For 2 Poles)

Why choose us?

• Our factory is equipped with state-of-the-art equipment, ensuring that we can produce Submersible Pumps that are of the highest quality.
• We have a complete range of Submersible Motor, strive for perfection in production technology, and continue to develop new products to meet the needs of the broad market.
• We have a comprehensive range of products to cater to the diverse needs of our customers, including high flow and high pressure Submersible Pumps.
• With high-end technical personnel and high-quality team, we can provide customers with perfect and high-quality Submersible Motor and after-sales service in a timely manner.
• Our products are competitively priced, ensuring that our customers get the best possible value for their money.
• Our meticulous work attitude has been highly praised by all walks of life, experts and scholars.
• We have a commitment to customer satisfaction, ensuring that every customer is happy with their purchase.
• High-efficiency and economical centrifugal pumps can not only meet the requirements of hygiene and gentle treatment of products, but are also reliable and easy to maintain.
• We use only the highest quality materials and components in our products, ensuring their durability and longevity.
• Our company has been established for many years and is a professional manufacturer engaged in the research and development, production, sales and service of Submersible Motor and other products.
